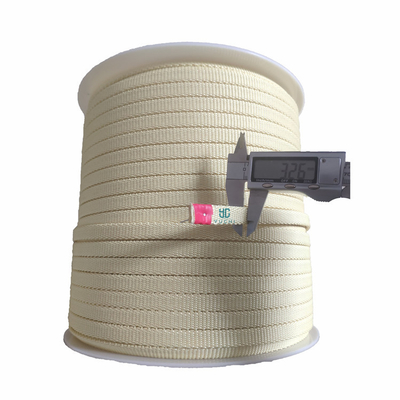

Flat Woven Kevlar Tape used in glass tempering furnaces 12*3mm size can be customized
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Kevlar Aramid Rope | Application | Glass Tempering Furnace |
|---|---|---|---|
| Material | Kevlar Aramid Fiber | Size | Can Be Customized |
| Specification | 250M Roll | Color | Yellow |
| Shape | Square/ Flat/ Round | Structure | Braided |
| Type | Kevlar Rope | MOQ | One Roll 250m |
| Packing | Carton | Feature | High Temperature Resistance |
Product Description
Flat Woven Kevlar Tape, Roller Ropes used in Glass Tempering Furnace 12*3mm
100% kevlar aramid yarn ropes Braided Kevlar aramid rope for glass tempering machine furnace TamGlass Landglass Northglass Mountain Glass Jinglass Tempering Furnace
Product Introduction:
The outstanding performance of Kevlar® fiber webbing is its high temperature resistance.
It can withstand high temperature up to 330 °C for a long time, and carbonization begins to occur at 427 °C, and can withstand instantaneous high temperature of 560 °C.
The super tensile performance & the excellent high temperature resistance, that ordinary fiber webbing does not have make it the favourite of many high temperature and high strength fields.
Aramid ropes are wrapped on the rollers of the tempering furnace to facilitate the rapid transportation of high temperature glass. After the glass is heated in high temperature in the tempering furnace, it is cooled rapidly by the wind grid, and the Kevlar roller rope can effectively protect the high temperature glass from contacting the low temperature metal roller table without cold explosion and no scratch.
Application:
Industrial use, clothing, high temperature, high strength, fire resistance, wear resistance, etc.
Regular sizes:
| Flat Rope Size (Can be customized) | ||||
| Model | Width (mm) | Thickness (mm) | ||
| 8 x 3 | 8 | 3 | ||
| 8 x 4 | 8 | 4 | ||
| 10 x 3 | 10 | 3 | ||
| 10 x 4 | 10 | 4 | ||
| 10 x 5 | 10 | 5 | ||
| 12 x 3 | 12 | 3 | ||
| 12 x 3.5 | 12 | 3.5 | ||
| 12 x 4 | 12 | 4 | ||
| 12 x 4.5 | 12 | 4.5 | ||
| 12 x 5 | 12 | 5 | ||
| 12 x 5.5 | 12 | 5.5 | ||
| 13 x 2 | 13 | 2 | ||
| 13 x 3 | 13 | 3 | ||
| 13 x 3.5 | 13 | 3.5 | ||
| Square Rope Size (Can be customized) | ||
| Model | Width (mm) | Thickness (mm) |
| 4 x 4 | 4 | 4 |
| 5 x 5 | 5 | 5 |
| 5.5 x 5.5 | 5.5 | 5.5 |
| 6 x 6 | 6 | 6 |
| 8 x 8 | 8 | 8 |
| 10 x 10 | 10 | 10 |
| 12 x 12 | 12 | 12 |
| Round Rope Size (Can be customized) | ||
| Dia 2mm | Dia 3mm | Dia 4mm |
| Dia 5mm | Dia 6mm | Dia 8mm |
| Dia 10mm | Dia 12mm | Dia 20mm |
Size can be customized with special specifications
Detailed Photos:
Product Features:
- Woven with kevlar aramid fibers,
- Strong tensile strenght,
- Fire retardant,
- High temperature resistance 560℃,
- Wear resistance,
- Cut resistance,
- Corrosion resistance,
- High pressure resistant,
- High intensity,
- Abrasion resistant,
- Heat resistant,
- Chemical resistant,
- Electrical Insulator,
- Good mechanical property.
Product Details:
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery:
MOQ, 1 piece = 1 roll (250meters),
we are professional manufacturer with many years experiences, self-produced direct sales, multi-specification, large-scale stock in stock, uninterrupted circulation supply!
We promise: 100% high-quality aramid yarn production, refusal to adulterate, cut corners, and serve our customers with quality and reputation.
