Kevlar ropes winding machine for winding kevlar aramid ropes onto the glass tempering furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Kevlar Ropes Winding Machine | Application | Tempered Glass Machine Rollers |
|---|---|---|---|
| Material | Kevlar Aramid Fiber | Size | Customized |
| Specification | 5.5mm*5.5mm*250M Roll | Shape | Square/ Flat/ Round |
| Structure | Steel Frame Etc | Packing | Wooden Case |
| Feature | High Temperature Resistance |
Product Description

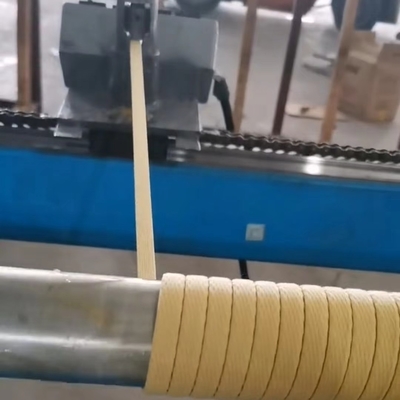

Kevlar ropes winding machine for winding kevlar aramid ropes onto the glass tempering furnace
Product Introduction:
Aramid ropes are wrapped on the rollers of the tempering furnace to facilitate the rapid transportation of high temperature glass. After the glass is heated in high temperature in the tempering furnace, it is cooled rapidly by the wind grid, and the Kevlar roller rope can effectively protect the high temperature glass from contacting the low temperature metal roller table without cold explosion and no scratch.
Application:
Industrial use, clothing, high temperature, high strength, fire resistance, wear resistance, etc.
Kevlar Rope
Regular sizes:
| Flat Rope Size (Can be customized) | ||||
| Model | Width (mm) | Thickness (mm) | ||
| 8 x 3 | 8 | 3 | ||
| 8 x 4 | 8 | 4 | ||
| 10 x 3 | 10 | 3 | ||
| 10 x 4 | 10 | 4 | ||
| 10 x 5 | 10 | 5 | ||
| 12 x 3 | 12 | 3 | ||
| 12 x 3.5 | 12 | 3.5 | ||
| 12 x 4 | 12 | 4 | ||
| 12 x 4.5 | 12 | 4.5 | ||
| 12 x 5 | 12 | 5 | ||
| 12 x 5.5 | 12 | 5.5 | ||
| 13 x 2 | 13 | 2 | ||
| 13 x 3 | 13 | 3 | ||
| 13 x 3.5 | 13 | 3.5 |
||
| Square Rope Size (Can be customized) | ||
| Model | Width (mm) | Thickness (mm) |
| 4 x 4 | 4 | 4 |
| 5 x 5 | 5 | 5 |
| 5.5 x 5.5 | 5.5 | 5.5 |
| 6 x 6 | 6 | 6 |
| 8 x 8 | 8 | 8 |
| 10 x 10 | 10 | 10 |
| 12 x 12 | 12 | 12 |
| Round Rope Size (Can be customized) | ||
| Dia 2mm | Dia 3mm | Dia 4mm |
| Dia 5mm | Dia 6mm | Dia 8mm |
| Dia 10mm | Dia 12mm | Dia 20mm |
Size can be customized with special specifications
Detailed Photos:
Product Features:
- Woven with kevlar aramid fibers,
- Strong tensile strenght,
- Fire retardant,
- High temperature resistance 560℃,
- Wear resistance,
- Cut resistance,
- Corrosion resistance,
- High pressure resistant,
- High intensity,
- Abrasion resistant,
- Heat resistant,
- Chemical resistant,
- Electrical Insulator,
- Good mechanical property.
Product Details:
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery:
MOQ, 1 piece = 1 roll (250meters),
we are professional manufacturer with many years experiences, self-produced direct sales, multi-specification, large-scale stock in stock, uninterrupted circulation supply!
We promise: 100% high-quality aramid yarn production, refusal to adulterate, cut corners, and serve our customers with quality and reputation.
FAQ:
1.Is your company a manufacturer or a trading company?
We are a manufacturer and have our own factory.
2.What is your lead time?
Generally it takes 30 days. The exact delivery time depends on the specific items and demanded quantity.
3.What terms does your company use in our international trade?
We usually do business in EXW works and door-to-door express . But if you have special requirement, we can also do in your convenience.
