high temperature resistance Nylon Vacuum Bagging Film for PVB Laminated Glass

  • high temperature resistance Nylon Vacuum Bagging Film for PVB Laminated Glass
  • high temperature resistance Nylon Vacuum Bagging Film for PVB Laminated Glass
Place of Origin China
Brand Name HIMJOY / QIANJUN
Model Number QJ-V
Minimum Order Quantity 1 roll
Price 1.4 usd per sqm
Packaging Details Roll packing
Delivery Time 10 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 rolls

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Laminated Material,Nylon,PA/PE,Nylon And PE Feature Moisture Proof,Water Soluble,shock Proof
Hardness Soft Usage Vacuum Moulding
Processing Type Blow Molding,Multiple Extrusion,Injection Molding,Casting Transparency Transparent
Thickness 90μm Color Transparent
Width 1650 Mm To 3000mm Application Industry
Length 300M Product Name Vaccum Bag Film, Nylon Vacuum Bagging Film
You can tick the products you need and communicate with us in the message board.
Specification (Unfolding Width x Length) Unit
1,650mm x 250m 1 Roll
2,100mm x 250m 1 Roll
2,300mm x 250m 1 Roll
2,500mm x 250m 1 Roll
3,000mm x 200m 1 Roll
Leave a Message
Specification (Unfolding Width x Length) Unit
Product Description

Vacuum Bagging Film for Laminated glass use

High temperature resistant nylon vacuum bag film, with a temperature resistance range from 120-240℃, high tensile strength, specially designed for the composite material hot-press molding process, good barrier properties under high temperature and high pressure, suitable for a variety of resin system vacuum bag technology.



1. Standard size of vacuum film for option:

Item

Unfolding width

(mm)

Folding width

(mm)

Thickness

( µm)

Roll Length

(meter)

Max Temperature

(℃)
1 1650 825 90 250 meters 160
2 2100 1050 90 250 meters 160
3 2300 1150 90 250 meters 160
4 2500 1250 90 250 meters 160
5 2700 1350 90 250 meters 160
6 3000 1500 90 200 meters 160

2. Instruction:

Our technology has the ability to process a variety of difficult laminated glass (such as a variety of curved glass or embossed glass laminated, as well as the United States DuPont SGP explosion-proof film laminating), high yield, easy to learn, less investment (The price is far lower than that of similar foreign products). At present, CSG, AVIC Sanxin, Chuangyi Technology, Jiangmen Junfa Glass, Foshan Nanliang, Jiangsu Aolan and many other companies all use our technology.



3. Brief introduction for vacuuming process:

Let's take a brief introduction for the vacuum film to make laminated glass.

When processing curved tempered glass or hot-bending glass laminating, it is often impossible to perform normal rolling processing due to the arc length or high arch height of the glass. And when laminating the DuPont SGP explosion-proof film, Most manufacturers use a glass with a vacuum strip around a circle, put it into the drying box and vacuum it, then enter the autoclave.

Since the vacuum belt only surrounds the glass one circle, it is not completely sealed, so the product quality problem often occurs, the equipment and process input of the drying box are increased, and the cost is high and the efficiency is low.

In addition, when processing the patterned glass, glass surface is wavy or other uneven shape, so that the vacuum strip cannot seal the glass at all and cannot be processed.

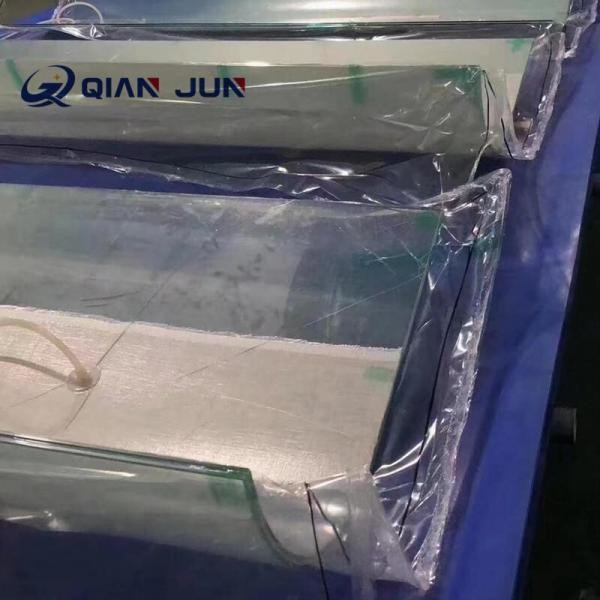

Our solution is to completely seal the glass with a vacuum bag and directly into the autoclave for vacuuming and form once. It has the characteristics of high yield, high efficiency and easy to learn. At the same time, this method is also suitable for making super large and wide laminated glass.
