Straight line Glass edging machine 9 grinding head linear polishing machine

  • Straight line Glass edging machine 9 grinding head linear polishing machine
Place of Origin CHINA
Brand Name JGSG
Model Number 9325
Minimum Order Quantity 1 set
Price 11000
Packaging Details containers
Delivery Time 60 days
Payment Terms L/C, T/T, MoneyGram, Western Union
Supply Ability 50sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 9 Motors Straight Line Glass Edging Machine Application Building Material Shops, Manufacturing Plant,
Voltage 380V 50Hz Machine Dimension 7400*100*2500mm
After-sales Service Provided Field Maintenance And Repair Service Condition New
Weight According To The Size Power(w) 19.5kw
Glass Thickness 3~19m Warranty 1 Year
Usage Glass Edge Grinding Color Customized
Leave a Message
Product Description

Straight line Glass edging machine 9 grinding head linear polishing machine

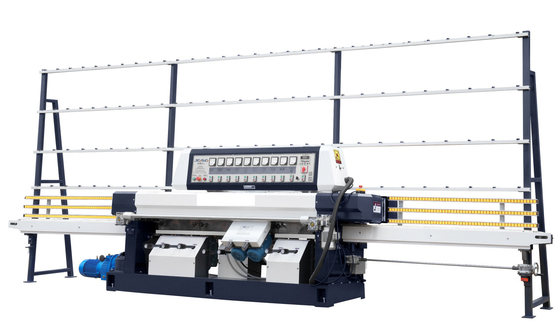

Straight line Glass edging machine 9 grinding head linear polishing machine 0



1. Machine Application

The machine is for grinding/polishing bottom edge of flat glass, with arris grinding. Suitable for processing the different size and thickness flat glass edging, arris, rough grinding, fine grinding and polishing will be finished at one time.



2. Structure:

The machine is composed of four parts:

mechanical parts, electrical cabinet, glass support rack and input/ output conveyer.



Export configuration details:

(1) Voltage: 3 phase 380V 50HZ

(2) Thickness: hand-cranked, the chain is conveyed at the inlet and outlet ends, and the glass support frame is an iron square tube.

(3) Using high quality solid rubber plate

(4) Add manual oil pump, stainless steel decorative rod

(5) Stainless steel floor water tank



3. Technical Specification:

Name Straight Line Edging machine (9 motors)
Model ZM9325
进料速度Feeding speed: 0.7~7m/min;
最小加工尺寸Min.glass size: 50mm*50mm;
玻璃厚度范围Glass thickenss : 3mm~25mm;
功率Power: 19.75kw;
外形尺寸Overall size: 7000mm*1000mm*2500mm ;
重量Machine weight: 3000kg;
倒角最大吃刀量Max chamfer grinding: .2mm
底边最大吃刀量Max bottom grinding: 3mm
Power motor: 劲龙Jinlong/新东亚Xingdnogya/明亮Mingliang
电压Voltage: 380V50HZ(其他可定制Can be customized)

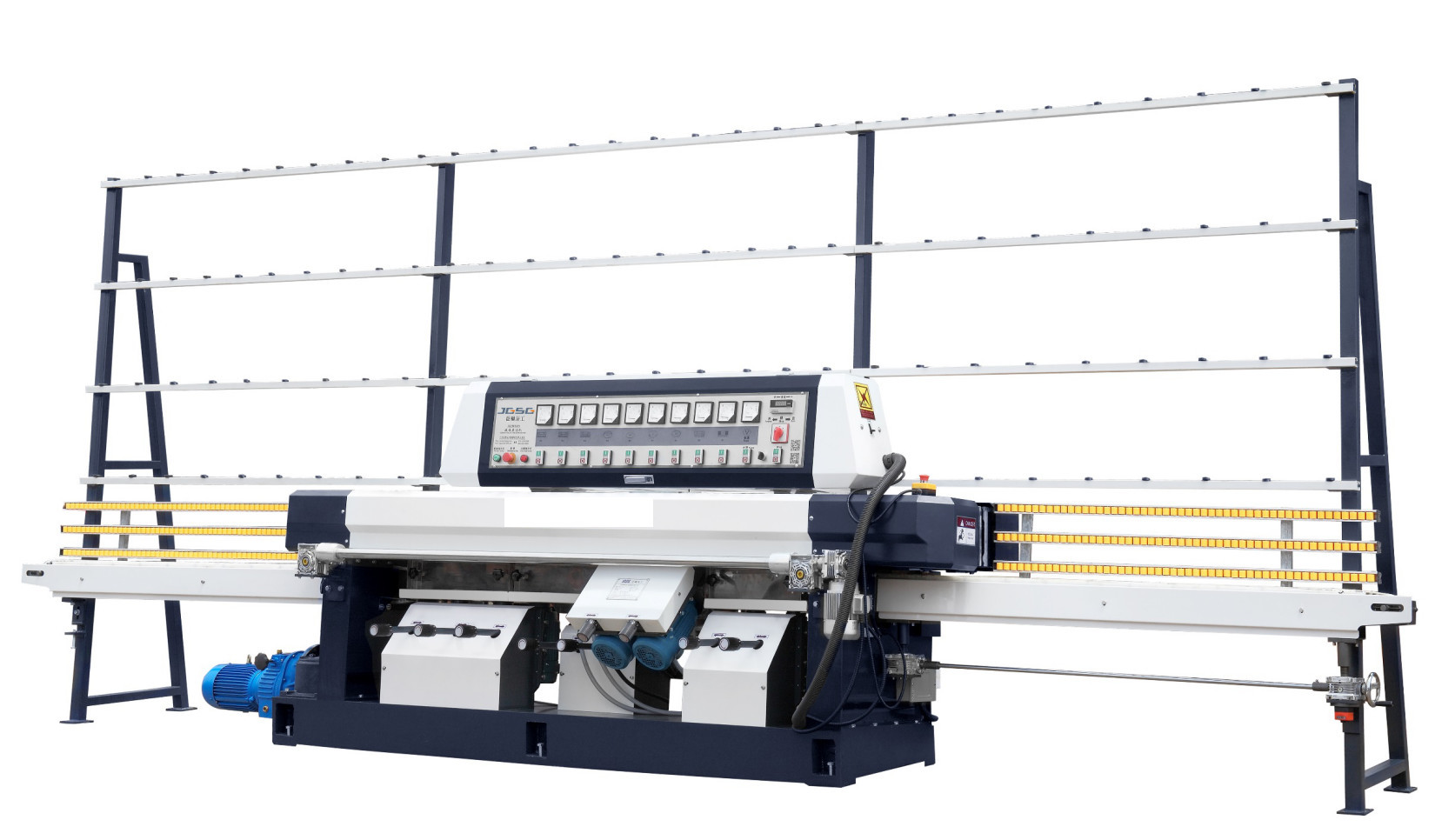

Straight line Glass edging machine 9 grinding head linear polishing machine 1
