Customized Full Automatic CNC Glass Cutting Machine line 4228
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Glass Cutting Machine | Application | Building Material Shops, Manufacturing Plant, |
|---|---|---|---|
| Supply Scope | Loading Table, Cutting Table, Breaking Table. | Voltage | 380V 50Hz |
| Machine Dimension | 5,300*14,000*900mm | Glass Fetching Time | ≤ 40 Scends/sheet |
| After-sales Service Provided | Field Maintenance And Repair Service | Condition | New |
| Weight | According To The Size | Power(w) | 13kw |
| Glass Thickness | 3~19mm, | Warranty | 1 Year |
| Usage | Glass Cutting | Color | Customized |
Product Description

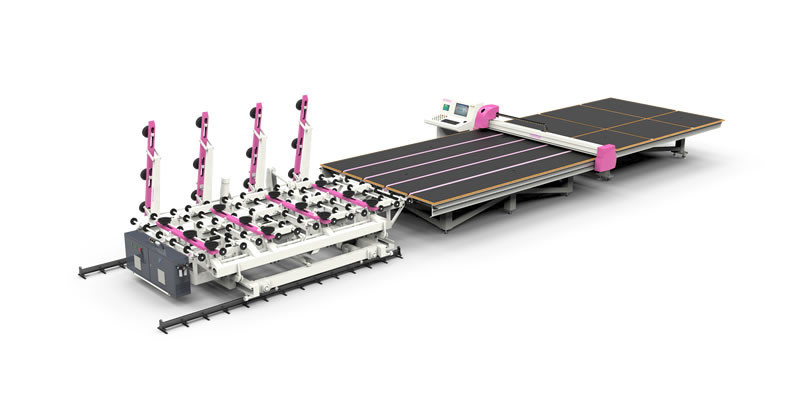

Customized Full Automatic CNC Glass Cutting Machine 4228
All in one CNC Full automatic high speed glass cutting machine
Equipment Configuration:
| Mechanical configuration | Electrical components | |||
|
Flip gear chain |
High-precision wear-resistant type |
PLC controller/frequency converter |
Delta |
|
|
Transmission roller
|
PU material |
Pressure Sensor |
SMC |
|
|
Vacuum suction cup |
Nitrile rubber material(double adsorption structure) |
Main control solenoid valve |
Taiwan Adek |
|
|
Vacuum pump |
Vacuum (60 CBM)-(German technology) |
Contactor |
Schneider |
|
|
Sucker Pad |
Silica gel |
Control Cable |
Flexible shielded cable, cable life ≥ 5 years |
|
|
Motor |
Bonfigli |
Proximity switch/photoelectric switch |
Fanics |
|
|
Cylinder/pipe |
AirTAC |
Relay |
Weidmuller |
|
3. Technical Parameters :
|
Total Equipment dimensions |
6000*4200*900mm |
Upper flip arm |
Single flip |
|
|
Maximum loading size |
3700*2800mm |
Loading station |
One stations |
|
|
Glass loading thickness |
3-19mm flat glass |
Upper flip arm |
3arms for Single-sided suction cup |
|
|
Maximum loading load |
900 kg |
Number of sucker pad/arm |
4 sucker pads |
|
|
Glass fetching time |
≤ 40 scend/sheet (adjustable) |
Power |
380V/50HZ |
|
|
Maximum suction depth 最大吸片深度 |
700mm |
Equipment power 设备功率 |
Approx. 13KW 约 13 KW |
|
|
Vacuum pressure 真空压力 |
-90~0Kpa (根据玻璃厚度可调) |
Compressed air 压缩空气 |
0.6 Mpa(Provide by user) |
