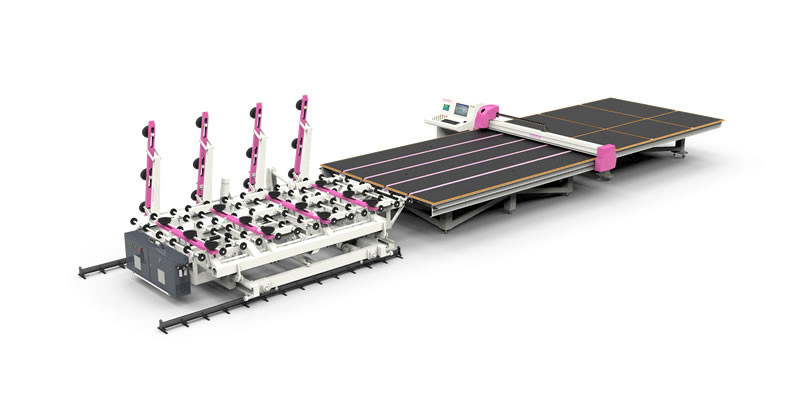

Cost Effective CNC Automatic Glass Cutting Machine Superior Price Glass Cutting Line
Product Details
| Product Name | CNC Glass Cutting Machine | Application | Building Material Shops, Manufacturing Plant, |
|---|---|---|---|
| Supply Scope | Loading Table, Cutting Table, Breaking Table. | Voltage | 380V 50Hz |
| Machine Dimension | 5,300*14,000*900mm | Glass Fetching Time | ≤ 40 Scends/sheet |
| After-sales Service Provided | Field Maintenance And Repair Service | Condition | New |
| Weight | According To The Size | Power(w) | 13kw |
| Glass Thickness | 3~19mm, | Warranty | 1 Year |
| Usage | Glass Cutting | Color | Customized |
Product Description
CNC Full Automatic CNC Glass Cutting Machine for Glass Cutting High Speed Before Tempered Glass Machine
All in one CNC Full automatic high speed glass cutting machine
Equipment Configuration:
| Mechanical configuration | Electrical components | |||
|
Flip gear chain |
High-precision wear-resistant type |
PLC controller/frequency converter |
Delta |
|
|
Transmission roller
|
PU material |
Pressure Sensor |
SMC |
|
|
Vacuum suction cup |
Nitrile rubber material(double adsorption structure) |
Main control solenoid valve |
Taiwan Adek |
|
|
Vacuum pump |
Vacuum (60 CBM)-(German technology) |
Contactor |
Schneider |
|
|
Sucker Pad |
Silica gel |
Control Cable |
Flexible shielded cable, cable life ≥ 5 years |
|
|
Motor |
Bonfigli |
Proximity switch/photoelectric switch |
Fanics |
|
|
Cylinder/pipe |
AirTAC |
Relay |
Weidmuller |
|
3. Technical Parameters :
|
Total Equipment dimensions |
6000*4200*900mm |
Upper flip arm |
Single flip |
|
|
Maximum loading size |
3700*2800mm |
Loading station |
One stations |
|
|
Glass loading thickness |
3-19mm flat glass |
Upper flip arm |
3arms for Single-sided suction cup |
|
|
Maximum loading load |
900 kg |
Number of sucker pad/arm |
4 sucker pads |
|
|
Glass fetching time |
≤ 40 scend/sheet (adjustable) |
Power |
380V/50HZ |
|
|
Maximum suction depth 最大吸片深度 |
700mm |
Equipment power 设备功率 |
Approx. 13KW 约 13 KW |
|
|
Vacuum pressure 真空压力 |
-90~0Kpa (根据玻璃厚度可调) |
Compressed air 压缩空气 |
0.6 Mpa(Provide by user) |
