Fused Sillica Roller shaft for tempered glass machine oven
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Resistance | High | Color | Transparent |
|---|---|---|---|
| Density | High | Durability | High |
| Hardness | High | Material | Fused Silica |
| Moisture Resistance | High | Resistance | High |
| Shape | Roller | Size | Customized |
| Surface | Smooth | Thermal Conductivity | Low |
| Thermal Expansion | Low | Tolerance | High |
| UV Resistance | High |
Product Description
Fused Sillica Roller shaft for tempered glass machine oven
NORTHGLASS,LAND GLASS, SOUTHTECH,YUNTONG GLASS TEMPERING MACHINE CERAMIC ROLLER HIGH QUALITY
Product Introduction:
The Fused Silica Ceramic roller, consisted of porcelain body, bearing, shaft and

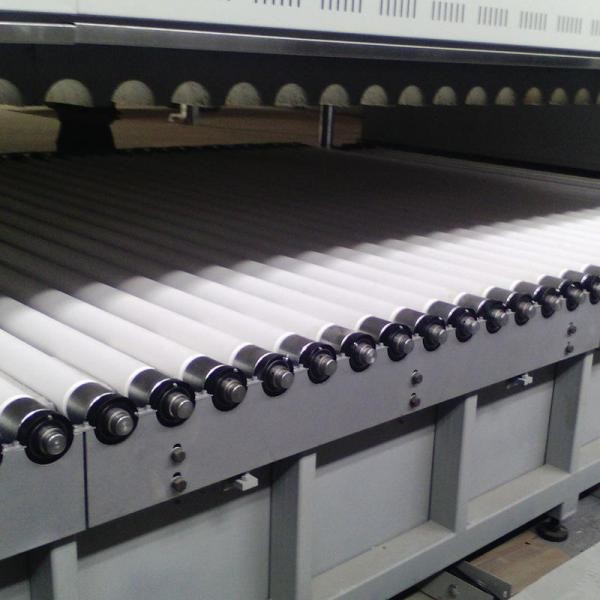

plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, mainly used for carrying and transporting glass in glass horizontal tempering furnace.
Application:
Glass Tempering Furnace, Silicon steel production, Lehr & lor float glass line, etc.
Basic Infomation:
| Raw Material | Silica | Bulk density | >1.98 (g/cm3) |
| Apparent porosity | 7-11 (%) | Press compression | 102 Mpa |
| Compression strength | ≥60 (MPa) | Expansion coefficient | 0.6*10-6/degree |
| Transverse strength | ≥30 (Mpa) | Certification | CE, RoHS |
| Expasion Coefficient | <0.6 (×10-6 /°C) | Warranty | 1 years |
| Surface Roughness | ≤1.5 (μm) | MOQ | 5 Pieces |
| OD Tolerance | ±0.05 (mm) | Density | 1.98g/cm3 |
|
Radial Beat (Tolerance in rotation) |
≤0.10 (mm) | Package | Fumigate Wooden Case |
Size can be customized with special specifications
Sample drawing FYI

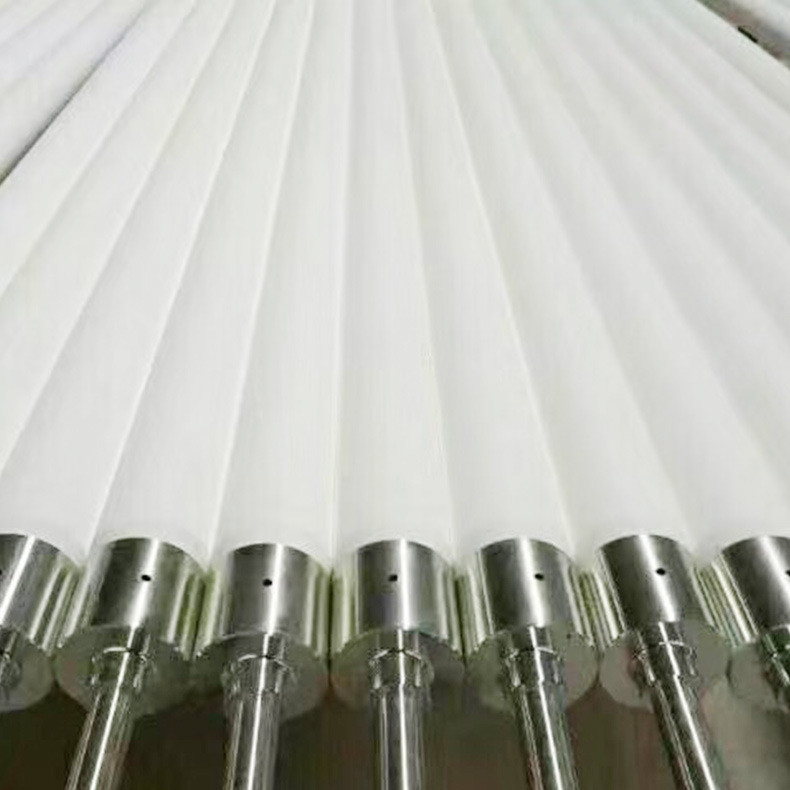

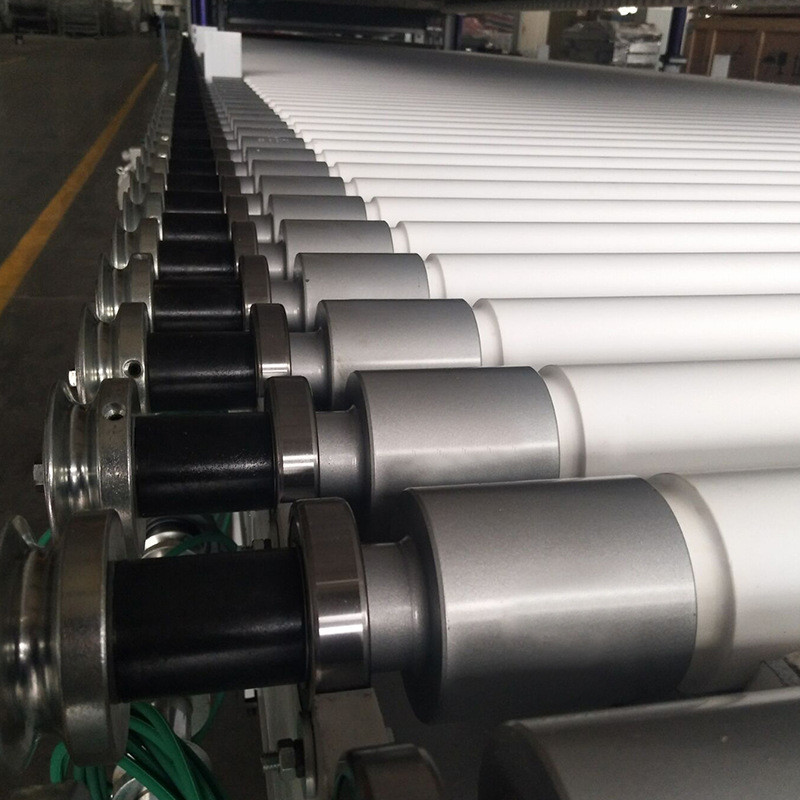

Detailed Photos:
Product Features:
High Purity.
High density.
Low porosity and critical manufacturing measurement.
The surface of the roller is smooth and delicate, the radial runout is small, the processing
accuracy is better than that of similar imported products, and it does not scratch the glass.
The steel head adopts anti-loose sleeve structure design and assembly, long service life.
The roll blank adopts the original grouting forming technology, which has the characteristics
of high density, high strength, no deformation at high temperature, wear resistance and long
service life.
High economic benefit, can reduce the comprehensive cost of belt conveyor, & reduce
maintenance man-hours.
Fused Silica Ceramic rollers which are mostly used in high grade Automobile, Electronic,
Solar etc glass manufacture.
Product warranty:
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery:
MOQ, 4 pieces
we are professional manufacturer with many years experiences, self-produced direct sales, multi-specification, large-scale stock in stock, uninterrupted circulation supply!
We promise: 100% high-quality quartz production, refusal to adulterate, and serve our customers with quality and reputation.
