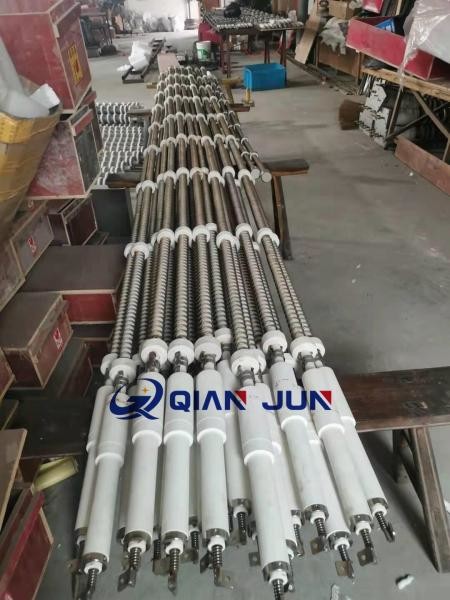

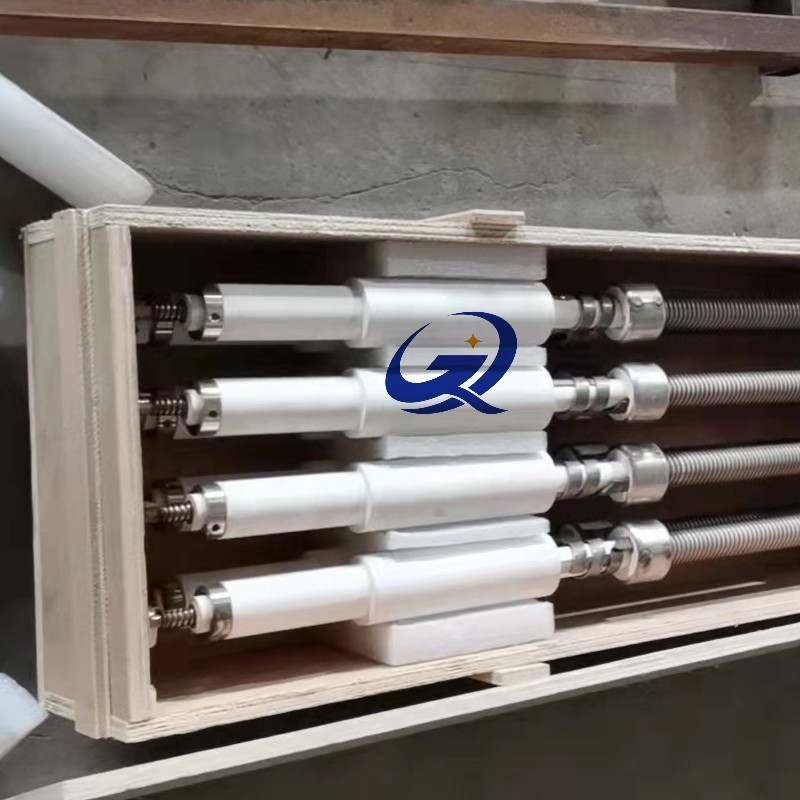

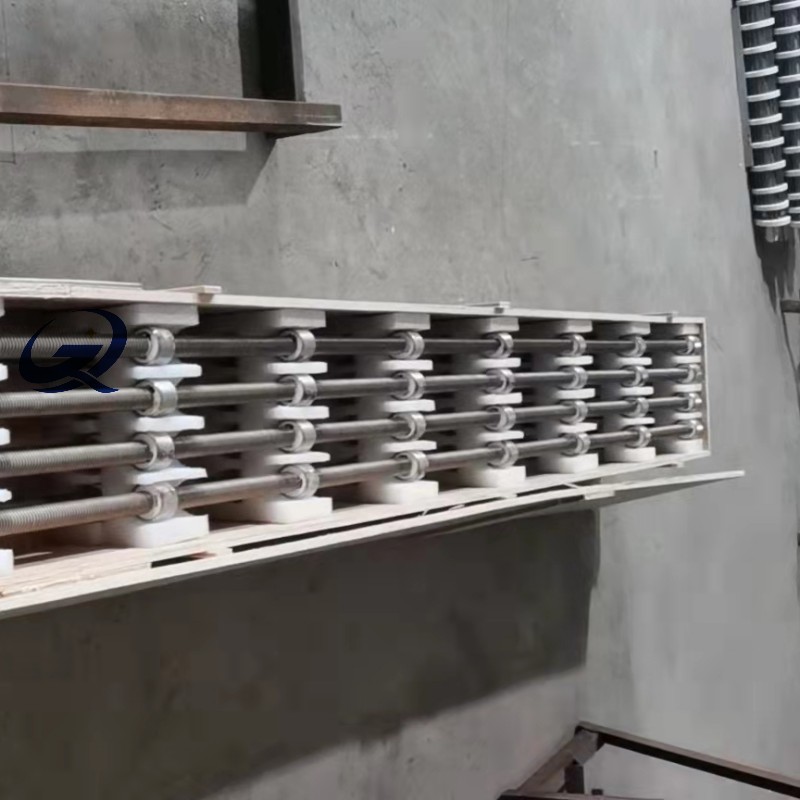

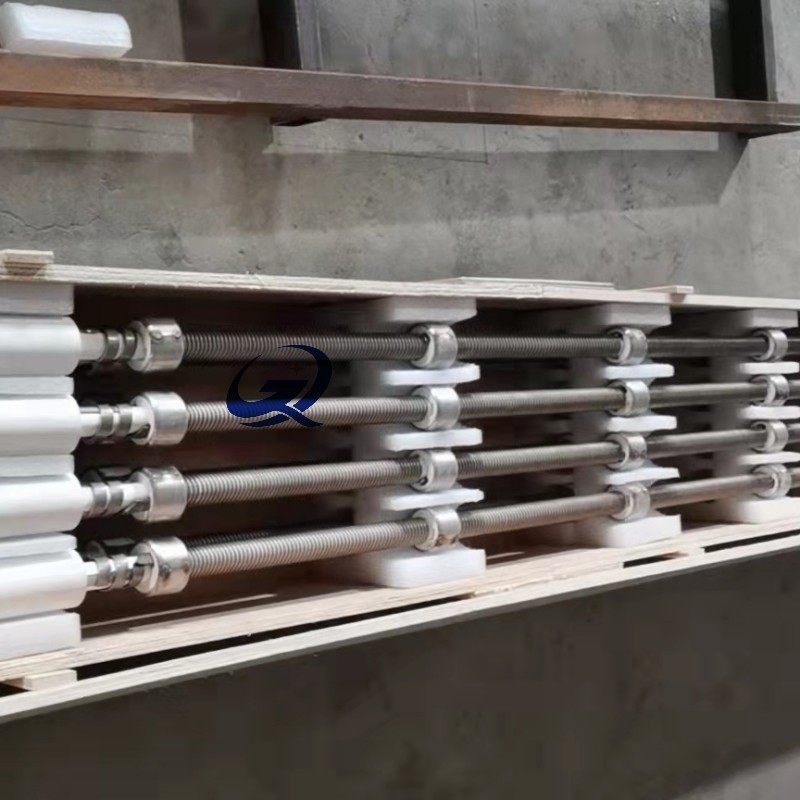

Heaters heating elemets for Tam Glass ProE2442 RC200 glass tempering furnace
Product Details
| Product Name | Tam Glass RC200 Heaters | Application | Glass Tempering Furnace |
|---|---|---|---|
| Machine Model | ProE 2442, RC200 Etc | Heater Length | 2940mm, 5280mm, 5870mm, 6480mm Etc |
You can tick the products you need and communicate with us in the message board.
| Heater length | 5290mm | |
|---|---|---|
| Heater length | 5870mm | |
| Heater length | 6450mm | |
| Heater length | 7650mm |
Product Description
Heaters heating elemets for Tam Glass ProE2442 RC200 glass tempering furnace
Application:
Customized Electric furnace wire, heating wire, Heater Resistance tempered glass furnace oven use heater coils for tam glass glasston,Uniglass, landglass, northglass, Jinglass, Mountain Glass, Yutong glass, etc.
| Popular sizes. (Can be customized) | |||
| Tamglass / Sonic furnace Heaters |
For North glass / Landglass / Mountain Glass etc |
||
| Length Size | Power | Wire Diameter | Length * Rows |
| 2940mm | 8.40KW | Φ3.0 mm | 1085mm * 2 |
| 4630mm | 10.20KW | Φ3.0 mm | 485mm * 4 |
| 5870mm | 14.20KW | Φ5.0 mm | 1085mm * 4 |
| 6470mm | 16.40KW | Φ3.0 mm | 730mm * 4 |
| 6470mm | 23.80KW | Φ4.5 mm | 1060mm * 4 |
| 7650mm | 21.30KW | Φ4.0 mm | 960mm * 4 |
| 7650mm | 31.47KW | Φ2.4 mm | 935mm * 4 |
|
Can be Customized (For Glasston, Sonic, Glasstech, Landglass, North glass, Southtec, Mountain etc) |
|||
Advantages:
- high quality
- customizable
- Heat fast
- Fast heat conduction
- Complete specifications
- long life
