New tamglass Furnace heaters Heating Elements Pro-E 2448 Glasston Glass Tempering furnace machinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heating Elements | Length | 7650mm, 21.30KW |
|---|
You can tick the products you need and communicate with us in the message board.
| Length | Power | |
|---|---|---|
| 2940mm | 8.40KW | |
| 5280mm | 12.00KW | |
| 6480mm | 16.40KW | |
| 7650mm | 21.30KW |
Product Description
New tamglass Furnace heaters Heating Elements Pro-E 2448 Glasston Glass Tempering furnace machinery
Industrial non-standard customized Electric furnace wire elements heating industrial high temperature tempering furnace resistance wire electric furnace wire heating coils heating spiral.
Application:

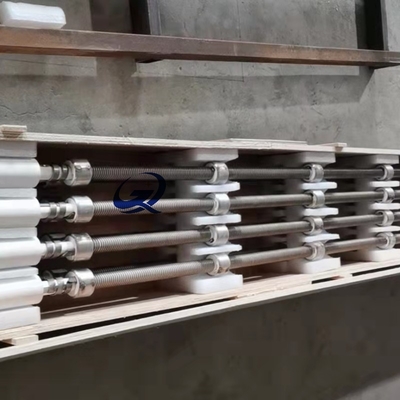

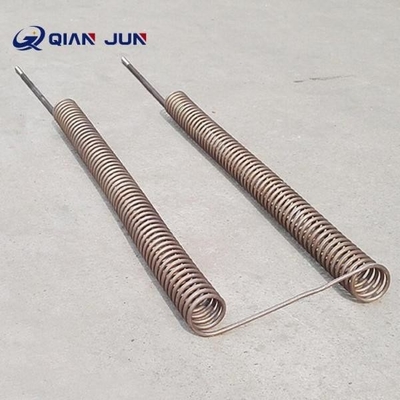

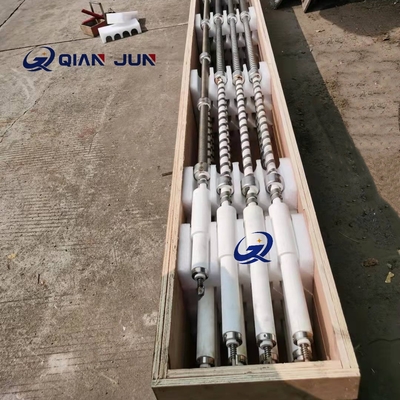

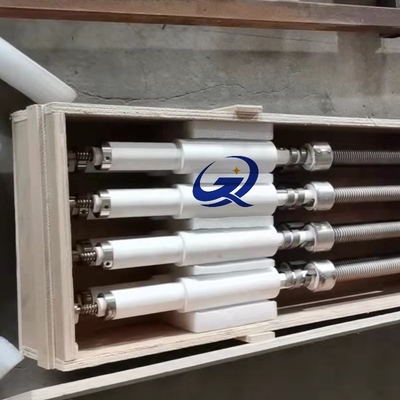

This heater and square stainless steel tube are used as the heating elements for TAMGLASS/GLASTON glass tempering furnaces. We make the heaters according to specifications of original glass tempering furnace heating elements.
All the specifications could be customized, and we could provide the heater coil and ceramic parts separately according to customer's requirements.
Microstructure: Ferrite
Power: according to customer requirements
Main use: electric furnace heating
Product certification: ISO9001
Melting point: 1500 ° C
Magnetic or not: magnetic
| Type | Al All type as machine manufacturer |
| Material | Nickel-cadmium or as machine manufacturer |
| Resistance | 3.23,3.457,4.12,4.408,4.12,4.48,4.801,5.13(Ω)etc |
| Power | 10.08,10.3,10.8,11.78,12,14k,15(W)etc |
| Max. Temp. | 1200(℃) |
Main properties and technical parameters of iron chromium aluminum electric resistance alloy:
Iron-chromium-aluminum electrothermal resistance alloy has the characteristics of high resistivity, small temperature coefficient of resistance, and high use temperature. Good corrosion resistance at high temperatures, especially suitable for use in sulfur and sulfide-containing atmospheres, and low cost. It is an ideal heating material in industrial electric furnaces, household appliances, and far-infrared devices.
The main advantages and disadvantages of iron chromium aluminum alloy series:
Advantages: Fe-Cr-Al electrothermal alloy has high use temperature, 1 use temperature can reach 1400 degrees (0Cr27A17Mo2), long service life, high surface load, good oxidation resistance, high resistivity, low price and so on.
Disadvantages: mainly the low temperature strength, the plasticity increases with the use of temperature, the component is easy to deform, difficult to bend and repair.
Tamglass furnace models:Pro-E 2448, HTF Super 2436, RC200, RC350 etc
| Length | Power | Voltage |
| 2940mm | 8.40KW | 380V |
| 5280mm | 12.00KW | 380V |
| 4677mm | 10.20KW | 380V |
| 5870mm | 16.40KW | 380V |
| 6470mm | 16.40KW | 380V |
| 6480mm | 19.68KW | 380V |
| 7650mm | 21.30KW | 380V |
| Ø60*60*2835mm | Auxiliary radiant tube | 380V |
| Ø60*60*5140mm | Main Radiant Tube | 380V |
| Ø60*60*5730mm | Main Radiant Tube | 380V |
| Ø60*60*6330mm | Main Radiant Tube | 380V |
| Ø60*60*7510mm | Main Radiant Tube | 380V |
