Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery

  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
  • Tamglass RC200 Heaters Heating Elements Glass Tempering Furnace oven machinery
Place of Origin China
Brand Name HIMJOY / QIANJUN
Model Number RC200, PRO-E, HTF XX48 etc
Minimum Order Quantity 4 pcs
Price 300-700
Packaging Details wooden case
Delivery Time 10 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Glasston Tamglass Glass Tempering Furnace Use Heating Element Material 0CR25AL5, Al6Ne, Nickel-cadmium
Application Glass Tempering Furnace/ Glass Toughen Plant Dimension(L*W*H) 2940mm, 5870mm, 6450mm Or Customized
Voltage 380V, 440V, Or Customized Packing Export Wooden Case
You can tick the products you need and communicate with us in the message board.
Length Power
2,940mm 8.4KW
5,280mm 12KW
4,677mm 10.2KW
5,870mm 16.40KW
6,480mm 19.68KW
7,650mm 21.30KW
Leave a Message
Length Power
Product Description

Heaters, Industrial non-standard customized Electric furnace wire elements

heating industrial high temperature tempering furnace resistance wire electric furnace wire heating coils heating spiral.

  • Application:

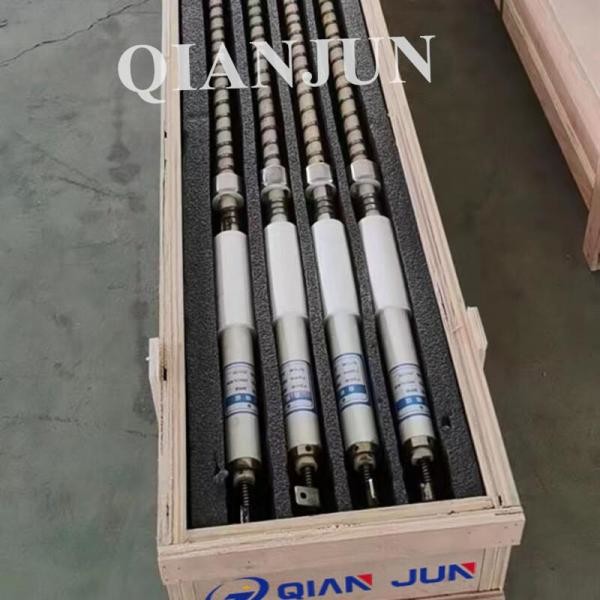

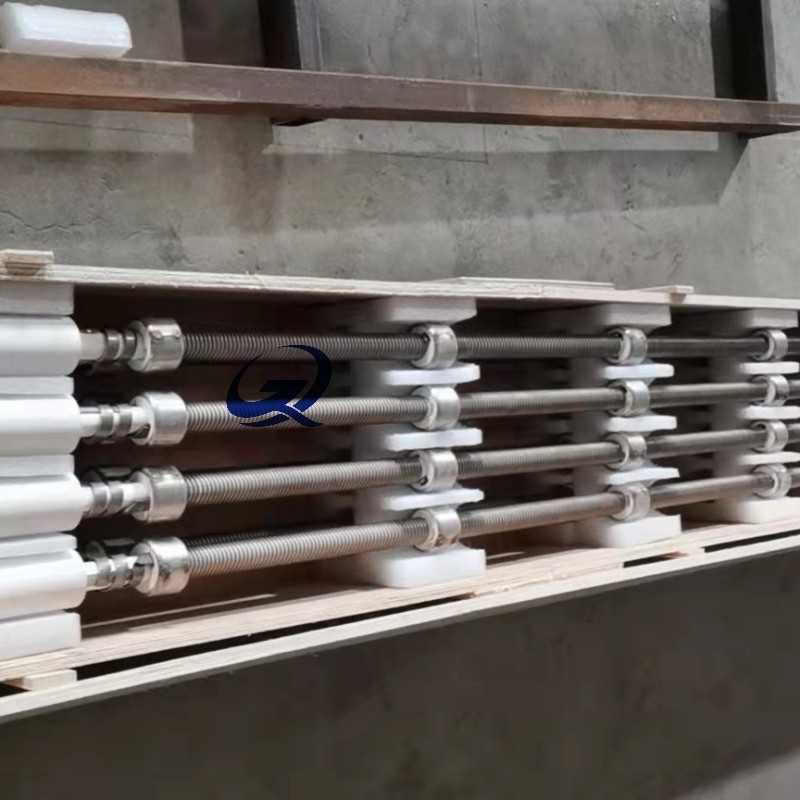

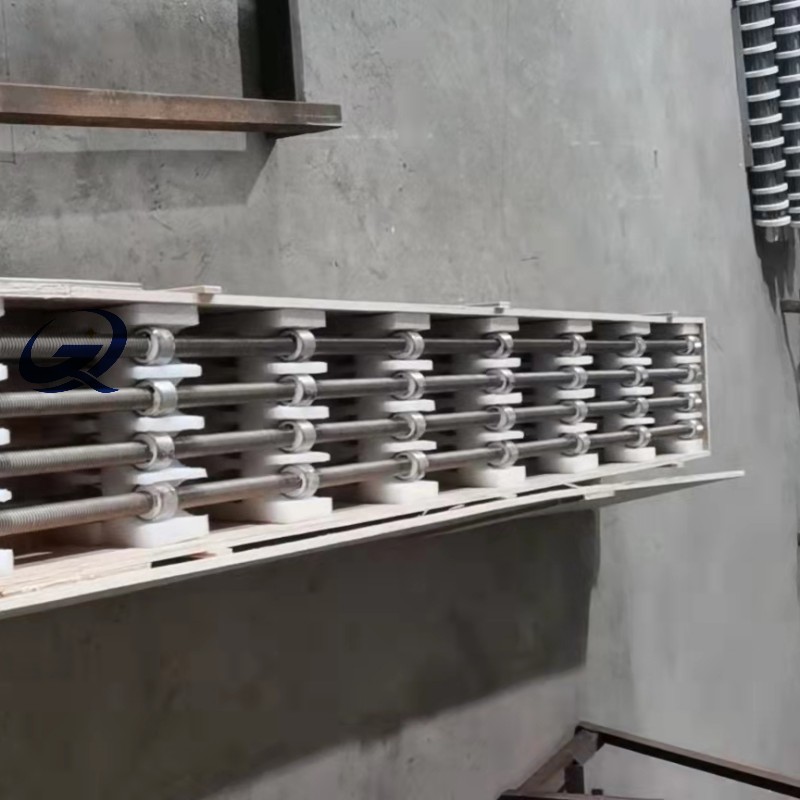

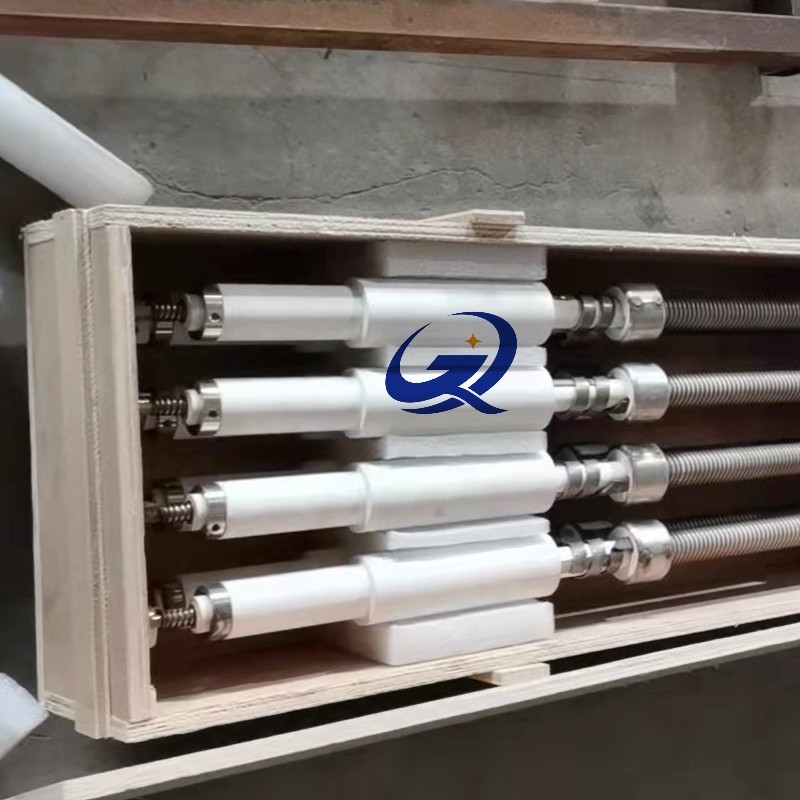

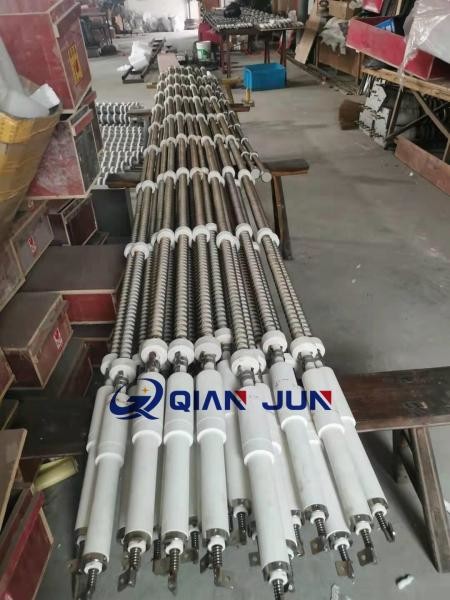

This heater and square stainless steel tube are used as the heating elements for TAMGLASS/GLASTON glass tempering furnaces. We make the heaters according to specifications of original glass tempering furnace heating elements.
All the specifications could be customized, and we could provide the heater coil and ceramic parts separately according to customer's requirements

Also, We could provide the heating element for many brands' glass tempering furnace, such as Tam glass, NorthGlass, Land Glass, SGS, Mountain Glass, Jinglass, Southtec glass, Fushan, etc.



Heaters for Glasston / Tamglass furnace: Pro-E, HTF Super 2436, RC200, RC350 etc

Length Power Voltage
2940mm 8.40KW 380V
5280mm 12.00KW 380V
4677mm 10.20KW 380V
5870mm 16.40KW 380V
6470mm 16.40KW 380V
6480mm 19.68KW 380V
7650mm 21.30KW 380V
Ø60*60*2835mm Auxiliary radiant tube 380V
Ø60*60*5140mm Main Radiant Tube 380V
Ø60*60*5730mm Main Radiant Tube 380V
Ø60*60*6330mm Main Radiant Tube 380V
Ø60*60*7510mm Main Radiant Tube 380V



Heating Element for other glass tempering furnace

Type All types as machine manufacturer
Material 0Cr25AL5, 0Cr21AL6Nb, Cr15Ni60, Cr20Ni80, etc
Resistance As machine manufacturer
Power As machine manufacturer
Max. Temp. ≥1250ºC
Specification As machine manufacturer
Machine Brand North Glass, Land Glass, SGS, Mountain Glass, Jinglass, Southtec glass, Fushan,



Ordering instructions:

please provide voltage, power, spiral diameter, wire diameter, length and other related parameters.



For example:

Voltage: 220V Power: 3KW

Resistance wire diameter: 1.8MM

Spiral outer circle diameter: 15MM

Length: 4.8 meters

Material: OCr25AL5
