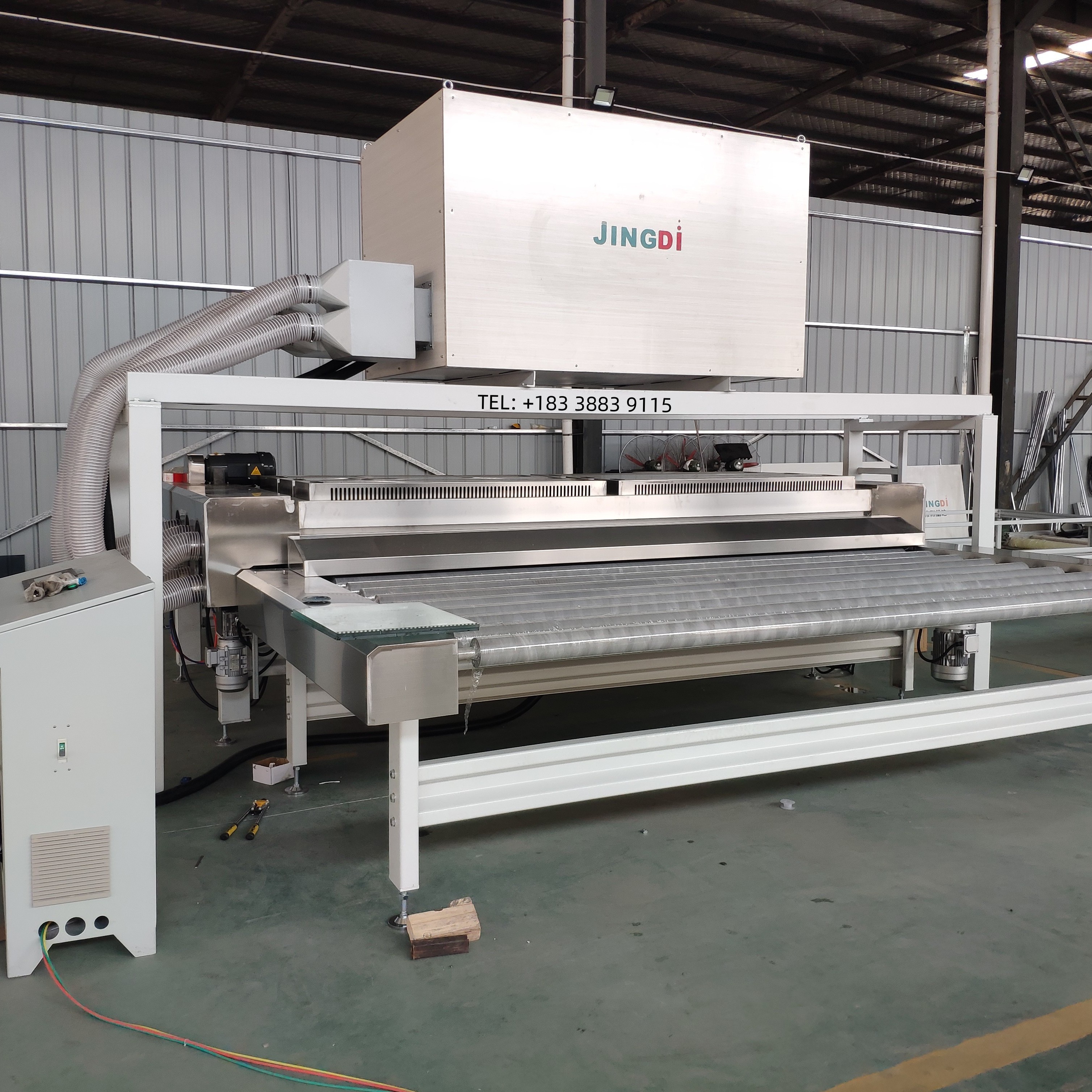

High Quality Glass Washing and Drying Machine, 2500MM width, 3000mm width, 3300mm width

  • High Quality Glass Washing and Drying Machine, 2500MM width, 3000mm width, 3300mm width
Place of Origin CHINA
Brand Name JINGDI
Model Number 2500
Minimum Order Quantity 1 set
Price 26000
Packaging Details containers
Delivery Time 90 days
Payment Terms L/C, T/T, MoneyGram, Western Union
Supply Ability 50sets per month
Product Details
Product Name Horizontal Glass Washing Machine Application Building Material Shops, Manufacturing Plant,
Voltage 380V 50Hz Machine Dimension 5850mm*(width)3000mm*(height)3500mm
After-sales Service Provided Field Maintenance And Repair Service Condition New
Weight According To The Size Power(w) 40kw
Glass Thickness 3~19mm Warranty 1 Year
Usage Glass Washing Color Customized
Leave a Message
Product Description

QX2500 Glass Washing & Drying MachineHigh Quality Glass Washing and Drying Machine, 2500MM width, 3000mm width, 3300mm width 0



1. Machine feature introduction:

  • Main drive is gear drive,inverter speed control and digital display,Brush roller drive of washing section is drove by upper and lower motors with separate belts,the rotation frequency conversion to adjust speed smoothly, longer service life,with independent air cylinder rise and fall to achieve high requirements of clearing the special glass.

Ø The machine structure is aluminum alloy assembled structure,never scrap,permanent service life,energy-efficient ,can save 70% energy.

Ø The sheet metal are sprayed with powder coating or high quality oil paint.

Ø The rubber roller(Φ75mm) is made of vulcanized rubber fully coated 304 stainless steel shaft structure (no contact with acidic liquid).

Ø The whole machine’s bearing seat adopts the new waterproof and wear-resistant bearing seat developed independently

Ø Cleaning section and water contact parts sheet metal is all 304 stainless steel

Ø The machine has three pairs of brushes (φ160mm), (it can be used for washing LOW-E glass, ordinary coated glass without scratch the surface)

Ø Cleaning section,air drying section can lifted 300mm(easy to cleaning the rubber roller,roller brush,and convininent for machine maintenance.

Ø The machine has two pairs of air knife which has large wind and good drying effect. The machine has heating system.

Ø Blower inlet air chamber is equipped with air filter,air knife section using a variety of muffler measures and exhaust device, to ensure low noise interference is small;independent frame of blower,the entire upper blower box installed in the workshop,convenient to check and clean.

Ø The water tanks can be remove, easy for cleaning, changing water, checking..etc, it can make washing effect more clean.

Ø Touch screen intelligent display,convenient for staff use, and simple operation,to use with the glass edging machine is the best way to reduce labor use.
